QDB-3A Automotive Ignition Coil Tester - Professional Car Diagnostic Tool for Testing Ignition Coils, Injector Solenoid Valves & Idle Stepper Motors | Perfect for Mechanics & DIY Car Repair | Engine Fault Detection & Troubleshooting
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:54489902
Product Description

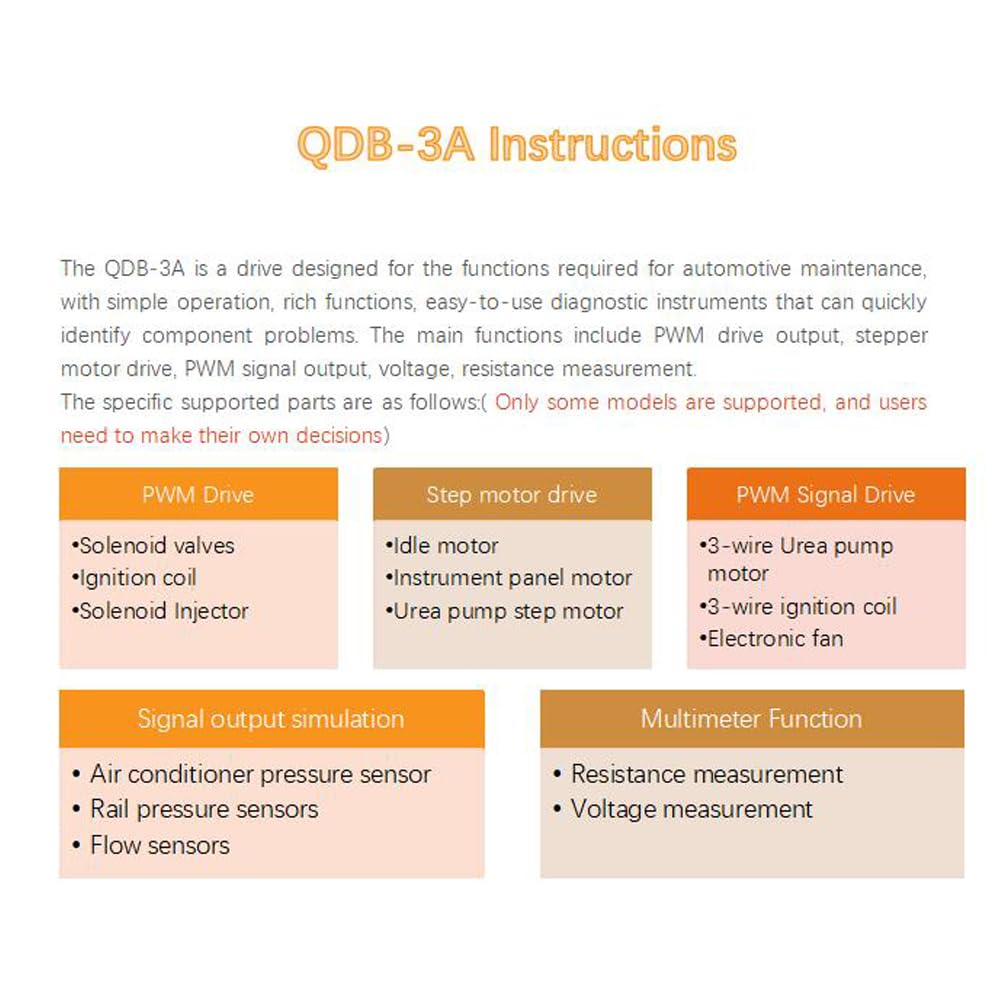

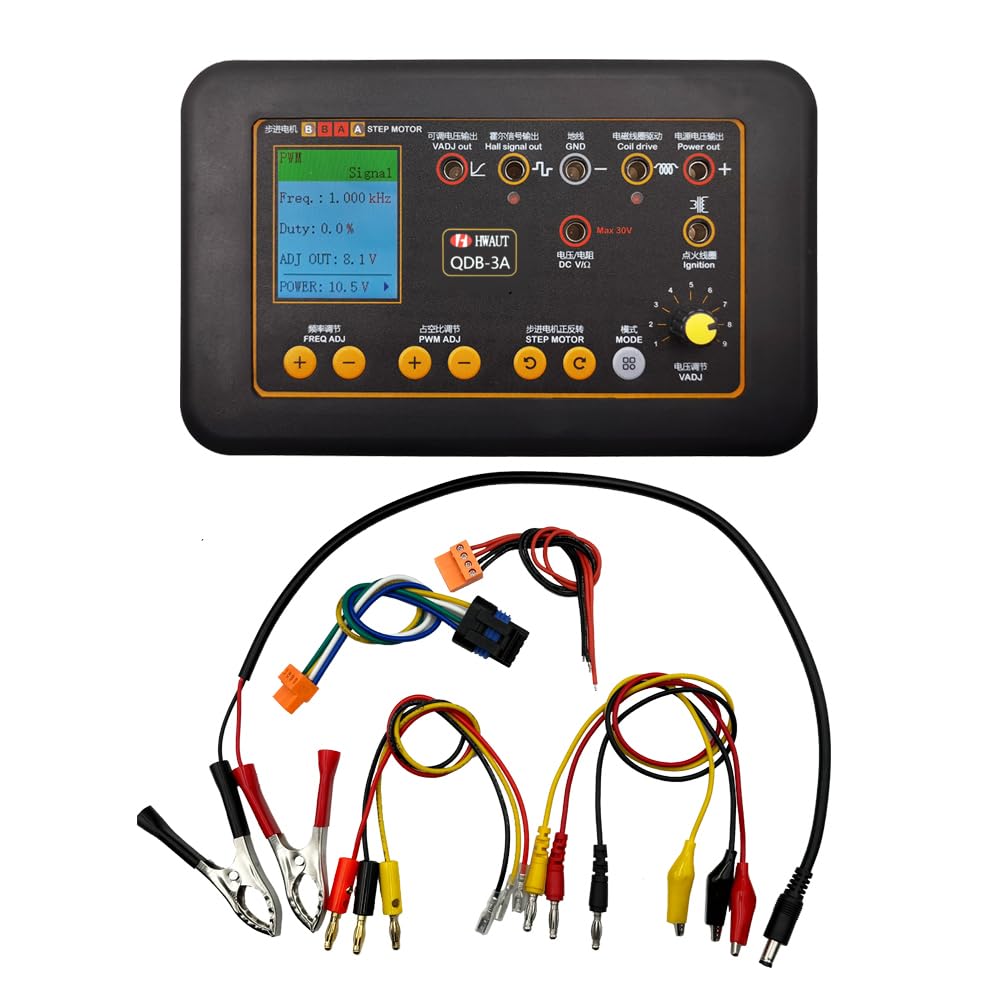

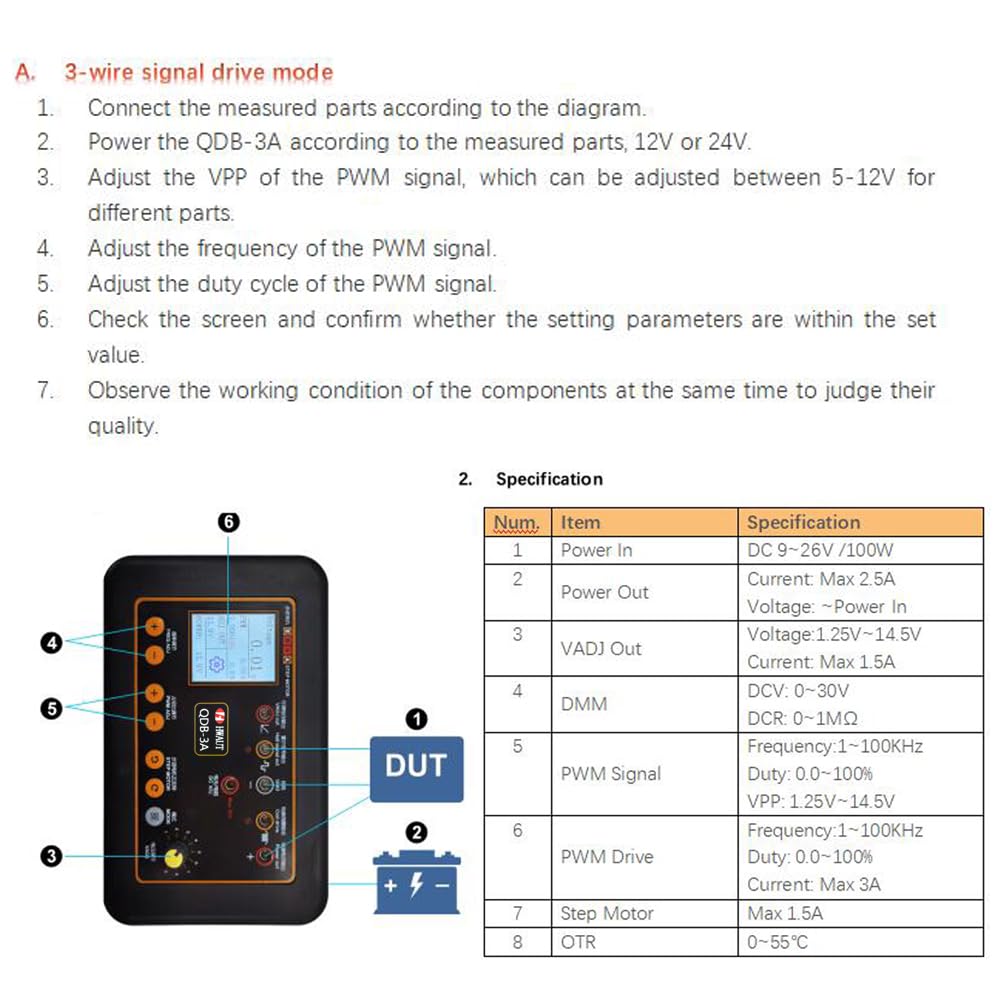

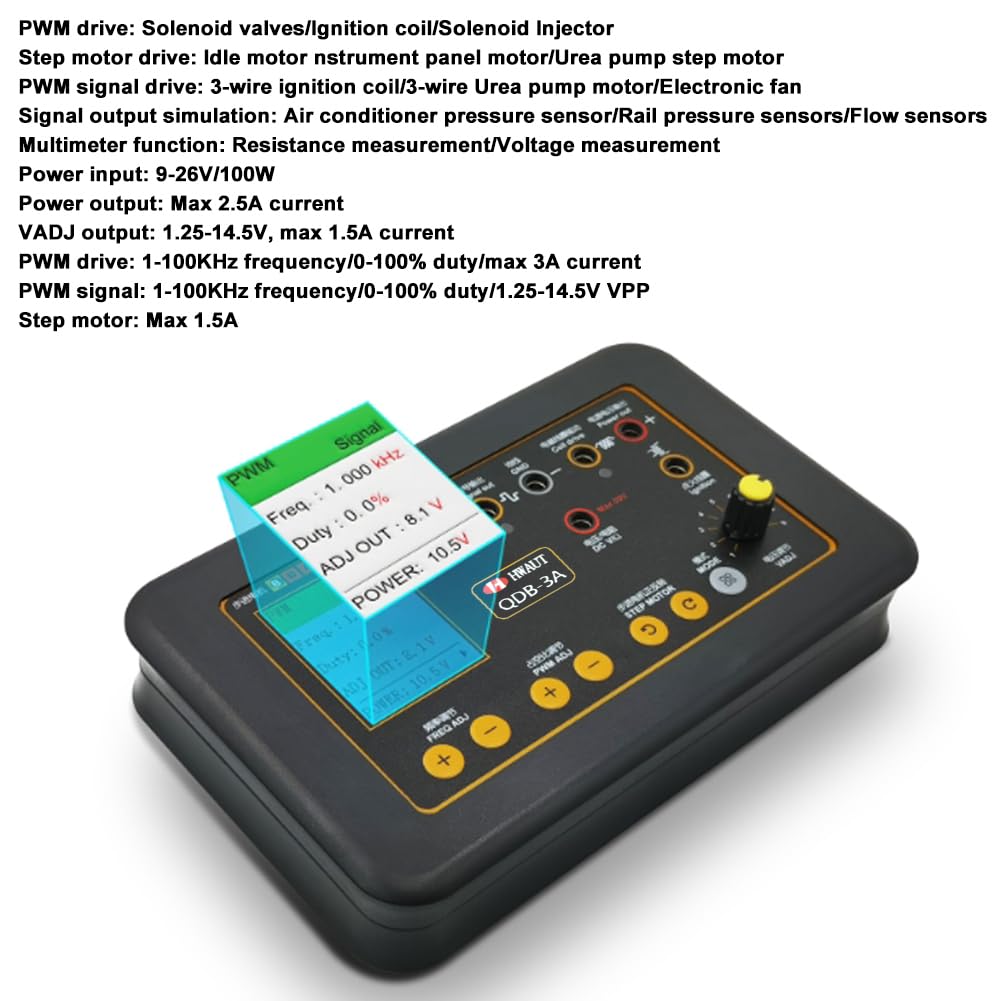

Specifications: Name: Ignition Coil Tester Material: ABS PWM drive: Solenoid valves/lgnition coil/Solenoid Injector Step motor drive: Idle motor nstrument panel motor/Urea pump step motor PWM signal drive: 3-wire ignition coil/3-wire Urea pump motor/Electronic fan Signal output simulation: Air conditioner pressure sensor/Rail pressure sensors/ sensors Multimeter function: Resistance measurement/Voltage measurement Power input: 9-26V/100W Power output: Max 2.5A current VADJ output: 1.25-14.5V, max 1.5A current PWM drive: 1-100KHz frequency/0-100% duty/max 3A current PWM signal: 1-100KHz frequency/0-100% duty/1.25-14.5V VPP Step motor: Max 1.5A OTR: 0-55℃ Item size: 165 * 96 * 26mm / 6.50 * 3.78 * 1.02in Package size: 150 * 100 * 60mm / 5.91 * 3.94 * 2.36in Package weight: 550g / 1.21lb Packing List: 1 * QDB-A3 Ignition Coil Tester 1 * Power Cable 3 * Test Connection Cables 3 * Single Plugs 1 * Idle Speed Stepper Motor Plug 1 * Stepper Motor Welding Cable
Product Features
【Versatile Testing abilities】 This product can drive and test various parts, including ignition coils, fuel injectors, solenoid valves, fuel metering valves, idle stepping motors, instrument stepping motors, headlight follow-up steering stepping motors, and urea pump motors, to meet the testing needs of a variety of automobiles, making it suitable for a variety of automobiles.
【High Precise Simulation】 The Hall signal with adjustable output frequency, amplitude, and duty ratio can accurately simulate various duty cycle sensors such as air conditioning pressure sensors and air meters.
【Enhanced ty Features】 The powersupply voltage s from 12 to 24V, with reverse connection and overcurrent ions to ensure the ty of the equipment during use.
【Wide Adjustment s】 The electromagnetic coil driving current s from 0 to 3.5A, the output frequency s from 1HZ to 100KHZ, the duty cycle adjustment is 1%-100%, and the adjustable voltage is 1.25V-11.5V, catering to different testing requirements.
【User-Friendly】 Easy to operate, all parameters are adjustable, making it easy to operate even for those without professional knowledge.
